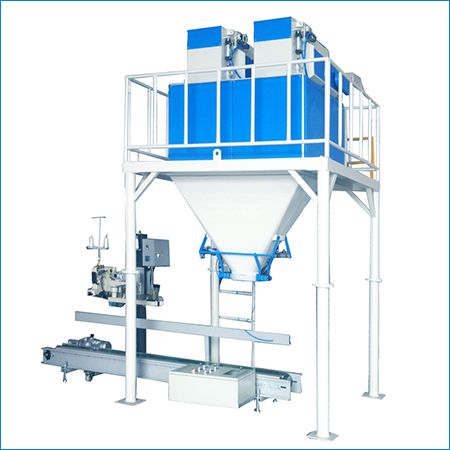

Granular Fertilizer Packing Machine
  • Granular Fertilizer Packing Machine
0

Granular Fertilizer Packing Machine

1- Feeding device: it adopts intelligent material feeding structure, via computer transducer or reducing motor control module, to realize the fast and slow speed feeding. And, according to different materials, you could adjust the feeding speed by adjusting the transducer ( no interference ). The maximum adjustment range is 100%. Meanwhile, if also adjust the parameter setting, it could achieve the best optimal proportion of fast and slow speed feeding and ensure to increase the packing speed and keep good accuracy.


2- Bag clamping deviceIt adopts pneumatic clamping device, consist of annular bag clamping bucket, clamping system, executive device and bag placing signal. And the annular bag clamping bucket installed with air return way. If there’s dust during filling into bag, in the outlet, it could equip trumpet shaped air suction hood and connect with the factory dust-collect system to improve the workers’ working environment.


3- Weighing system:It adopts USA Sensors Systems, IL series weighing load cells which with high accuracy, durability, steady working, and impact resistance. They are matched with sole drive connection structure to fix them with the bag clamping device and weighing system.


4- Weighing control unit: It includes weighing control cabin, electromagnetic valve, proximity switch, weighing terminal with PANTHER, programmed weighing controller, isolation transformer, power supply switch and relative components. It’s the brain of the packing machine working.


Belt Conveyor

Transport the good sealed bags to next processing by constant speed, speed adjustable through the inverter, and matching with the sewing machine speed.

    ●Conveyor length:   3000mm

    ●Conveyor speed:    8-12m/min

    ●Conveyor width:    400mm

    ●Motor power:       0.75kw


GK35 Bag Closing Machine: Class GK35 sewing head is special designed for closing bags filled with soda, lime, minerals, and hundreds of other products. Working with a column and belt conveyor, it can accomplish packing operation efficiently.

GK35 series bag closing machine

Model GK35-6A sewing machine automatic cutting thread 0.37kw

         Single needle, two threads

Start-stop: automatically by photoswitch

Thread chain cutter: automatically by air cylinder operated guillotine cutter

Stitch length: adjustable from 6.5-11 mm, standard setting 8 mm

Standard needle: 80800 x 200-250#

Speed: up to 2000 RPM, depending on sewing material and operation

Tape folder: adjustable for 50-70 mm wide tape (selected or not)

500*500*325mm, 36Kg, Carton package;


Flowing Process:

Manual Bag placing→Automatic filling→ Automatic weighing→ Auto bag unloading →Automatic bag conveyor →Automatic bag top sewing & auto threads cutting  →Next round


1- Feeding device: it adopts intelligent material feeding structure, via computer transducer or reducing motor control module, to realize the fast and slow speed feeding. And, according to different materials, you could adjust the feeding speed by adjusting the transducer ( no interference ). The maximum adjustment range is 100%. Meanwhile, if also adjust the parameter setting, it could achieve the best optimal proportion of fast and slow speed feeding and ensure to increase the packing speed and keep good accuracy.


2- Bag clamping deviceIt adopts pneumatic clamping device, consist of annular bag clamping bucket, clamping system, executive device and bag placing signal. And the annular bag clamping bucket installed with air return way. If there’s dust during filling into bag, in the outlet, it could equip trumpet shaped air suction hood and connect with the factory dust-collect system to improve the workers’ working environment.


3- Weighing system:It adopts USA Sensors Systems, IL series weighing load cells which with high accuracy, durability, steady working, and impact resistance. They are matched with sole drive connection structure to fix them with the bag clamping device and weighing system.


4- Weighing control unit: It includes weighing control cabin, electromagnetic valve, proximity switch, weighing terminal with PANTHER, programmed weighing controller, isolation transformer, power supply switch and relative components. It’s the brain of the packing machine working.


Belt Conveyor

Transport the good sealed bags to next processing by constant speed, speed adjustable through the inverter, and matching with the sewing machine speed.

    ●Conveyor length:   3000mm

    ●Conveyor speed:    8-12m/min

    ●Conveyor width:    400mm

    ●Motor power:       0.75kw


GK35 Bag Closing Machine: Class GK35 sewing head is special designed for closing bags filled with soda, lime, minerals, and hundreds of other products. Working with a column and belt conveyor, it can accomplish packing operation efficiently.

GK35 series bag closing machine

Model GK35-6A sewing machine automatic cutting thread 0.37kw

         Single needle, two threads

Start-stop: automatically by photoswitch

Thread chain cutter: automatically by air cylinder operated guillotine cutter

Stitch length: adjustable from 6.5-11 mm, standard setting 8 mm

Standard needle: 80800 x 200-250#

Speed: up to 2000 RPM, depending on sewing material and operation

Tape folder: adjustable for 50-70 mm wide tape (selected or not)

500*500*325mm, 36Kg, Carton package;


Flowing Process:

Manual Bag placing→Automatic filling→ Automatic weighing→ Auto bag unloading →Automatic bag conveyor →Automatic bag top sewing & auto threads cutting  →Next round
