FA-SD series walk through metal detector
Advantages of FA-SD series walk through metal detector: high sensitivity; anti-interfere;multi detection zones; adjust sensitivity of each zone individually; power on self diagnostic; 7-inch LCD touch screen; high-strength materials, fireproof, anti-corrosion, shockproof; real-time environment interfere monitor.
Patented and certified on the material, appearance design and software copyright
Features:
※ Multi-zone technology: 8/16/24/33 detection zones, adjust sensitivity of each zone individually.
※ Mobile connection technology: realize mobile APP remote control(optional).
※ Self calibration once power on.
※ Self diagnostic, it will inform the user when exit the system.
※ Start-stop technology:infrared devices with automatic start-stop technology.
※ Adjust the working frequency automatically or manually.
※ Detection Technology: even detection technology, no blind spot.
※ Professional detection process: built in 35 different detection occasions(providing upgrade services).
※ Detection sensitivity of each zone: from 0 to 200 level.
※ Counter: record the pass and alarm numbers.
※ Query function: the system has real-time information query function.
※ Intelligent Standby: the system has intelligent standby operation alerts.
※ Working Standby:16 high-brightness LED indicator on.
※ Detection speed: more than 60 persons/min.

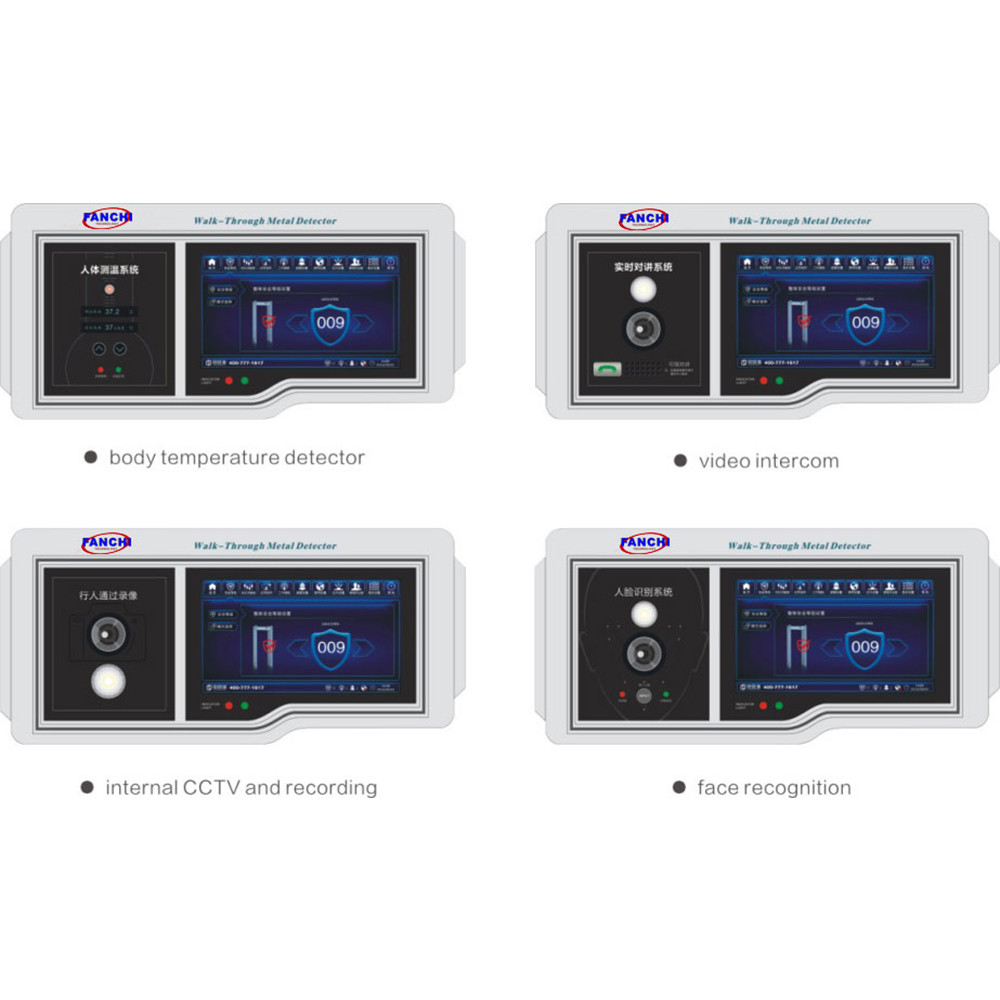

Optional Functions
Specifications
Model | FA-SD |
Touch screen | 7-inch HDMI LCD touch screen |
Detection Zones | 8/16/24/33 |
Working frequency | 1-100 |
IP Grade | IP55 |
Highest standard | Metal size≥6g |
Working voltage | AC90V～240V 50／60Hz |
Power | 12W |
Working environment | -20℃～65℃ |
External dimensions | 2240×670x850mm |
Vertical channel size | 2000x700mm |
Packing size | 2280x700x290mm |
Weight | NW 67KG, GW 75KG |
Installation environment | (W) 2500px* (L) 5000px（no metal in this range） |
Optional Function | 1．Mobile APP remote control 2．Query in/out record 3．Multiple alarm sounds 4．Front or rear single side alarm light |
